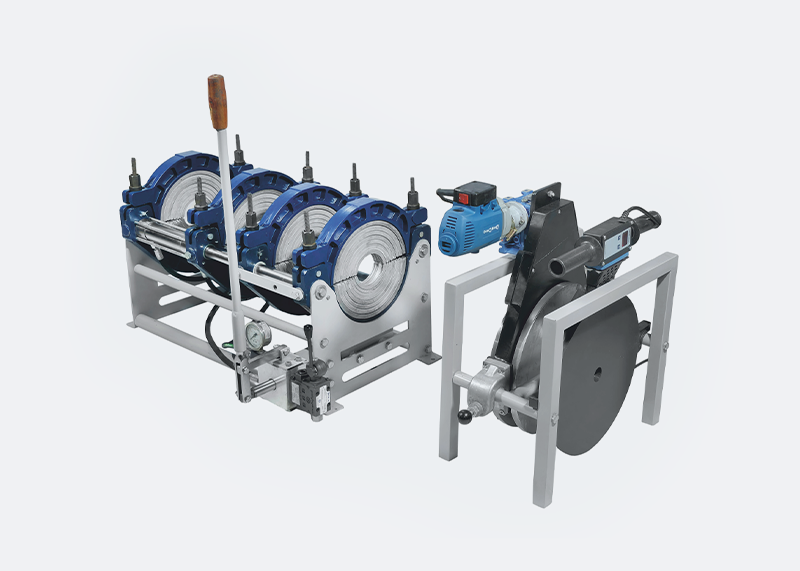

Hand Pump Hydraulic Hdpe Pipe Jointing Machine

Application & Features :

Suitable for butt fusion welding of plastic pipes and fittings made of PE, PP, and PVDF in construction site or workshop.
Low starting pressure ensures reliable welding quality of small pipes.
Consists of basic frame, heating plate, planning tool, and support (for planning tool & heating plate) and hydraulic unit.
Use of high quality pressure casting allows low weight without compromising strength and performance, while providing extra strength when welding not perfectly round pipe.
Removable PTFE coated heating plate with inbuilt Digital temperature control system.
Hand pump hydraulic unit easy to use without power with accurate Analogue Pressure read out.
Electric facer cutter with double cutting blades.
Easy to read high accurate pressure gauge meter.

Technical Specifications :

Model	HP200	HP250	HP315
Welding range (mm)	63.75.90.110.125. 140.160.180.200	90.110.125.140.160. 180.200.225.250	90.110.125.140 .160.180.200.225 .250.280.315
Heating Plate Max. Temp	270 ^Oc	270 ^Oc	270 ^Oc
Temp. Deviation in surface	<+-5 ^oc	<+-5 ^oc	<+-5 ^oc
Working voltage	220V 50Hz	220V 50Hz	220V 50Hz
Heating Plate Power	1.3 KW	1.6 KW	2.5 KW
Facer Power	1.0 KW	1.1 KW	1.1 KW
Net Weight Machine & Heater Support	72 KGS	94 KGS	145 KGS

Hand Pump Series Welding Machine
