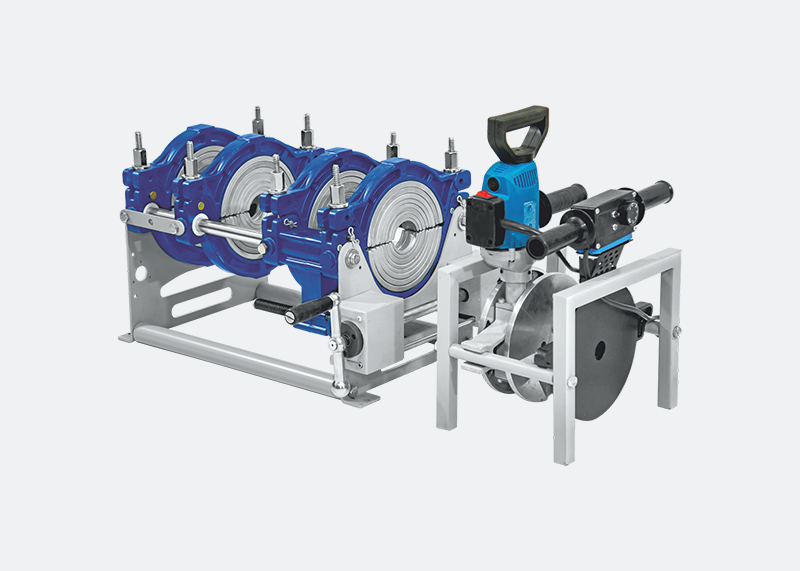

ROTO Series Manual Butt Fusion Machine

Application & Features :

Easy Self Pressure Locking System.
Suitable for butt fusion welding of plastic pipes and fittings
made of PE, PP and PVDF in construction site or workshop.
Consists of basic frame, heating plate, planning tool, and support (for planning tool & heating plate).
PTFE coated heating plate with Thermostat Controller
Electric facer cutter with double cutting edge blades.
Low starting pressure ensures reliable welding quality of small pipes.
t is made of lightweight and high strength material, simple structure and easy to operate.
se of high quality pressure casting allows low weight without compromising strength and performance, while orivudubg extra strength when welding not perfectly round pipe.

Technical Specifications :

Model	R160	R200
Welding range (mm)	50.63.75.90.110. 125.140.160	63.75.90.110.125. 140.160.180.200
Heating Plate Max. Temp	270°C	270°C
Temp. Deviation in surface	<+5°C	<+5°C< /td>
Working voltage/Gen. Req.	220V 50Hz/5kva	220V 50Hz/5kva
Heating Plate Power	2.2 KW	2.2 KW
Facer Power	1.0 KW	1.0 KW
Net Weight Machine, Facer, Heater & Support	43 KGS	51 KGS

Roto Series Manual Butt Fusion Machine
